23. Neural Network Regression with JAX#

class Config(NamedTuple):
    epochs: int = 4000             # Number of passes through the data set
    output_dim: int = 10           # Output dimension of input and hidden layers
    learning_rate: float = 0.001   # Learning rate for gradient descent
    layer_sizes: tuple = (1, 10, 10, 10, 1)  # Sizes of each layer in the network
    seed: int = 14                 # Random seed for data generation

def generate_data(
        key: jax.Array,         # JAX random key
        data_size: int = 400,   # Sample size
        x_min: float = 0.0,     # Minimum x value
        x_max: float = 5.0      # Maximum x value
    ):
    """
    Generate synthetic regression data.
    """
    x = jnp.linspace(x_min, x_max, num=data_size)
    ϵ = 0.2 * jax.random.normal(key, shape=(data_size,))
    y = x**0.5 + jnp.sin(x) + ϵ
    # Return observations as column vectors
    x = jnp.reshape(x, (data_size, 1))
    y = jnp.reshape(y, (data_size, 1))
    return x, y

config = Config()
key = jax.random.PRNGKey(config.seed)
key_train, key_validate = jax.random.split(key)
x_train, y_train = generate_data(key_train)
x_validate, y_validate = generate_data(key_validate)

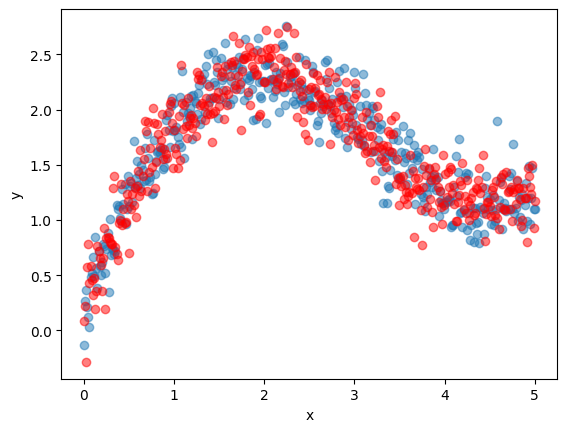

fig, ax = plt.subplots()
ax.scatter(x_train, y_train, alpha=0.5)
ax.scatter(x_validate, y_validate, color='red', alpha=0.5)
ax.set_xlabel('x')
ax.set_ylabel('y')
plt.show()

class LayerParams(NamedTuple):
    """
    Stores parameters for one layer of the neural network.

    """
    W: jnp.ndarray     # weights
    b: jnp.ndarray     # biases

def initialize_layer(in_dim, out_dim, key):
    """
    Initialize weights and biases for a single layer of a the network.
    Use He initialization for weights and ones for biases.

    """
    W = jax.random.normal(key, shape=(in_dim, out_dim)) * jnp.sqrt(2 / in_dim)
    b = jnp.ones((1, out_dim))
    return LayerParams(W, b)

def initialize_network(
        key: jax.Array,     # JAX random key
        config: Config      # contains configuration data
    ):
    """
    Build a network by initializing all of the parameters.
    A network is a list of LayerParams instances, each
    containing a weight-bias pair (W, b).

    """
    layer_sizes = config.layer_sizes
    params = []
    for i in range(len(layer_sizes) - 1):
        key, subkey = jax.random.split(key)
        layer = initialize_layer(
            layer_sizes[i],      # in dimension for layer
            layer_sizes[i + 1],  # out dimension for layer
            subkey
        )
        params.append(layer)
    return params

def f(
        θ: list,                        # Network parameters (pytree)
        x: jnp.ndarray,                 # Input data (row vector)
        σ: callable = jnp.tanh          # Activation function
    ):
    """
    Perform a forward pass over the network to evaluate f(θ, x).
    """
    *hidden, last = θ
    for layer in hidden:
        x = σ(x @ layer.W + layer.b)
    x = x @ last.W + last.b
    return x

def loss_fn(
        θ: list,            # Network parameters (pytree)
        x: jnp.ndarray,     # Input data
        y: jnp.ndarray      # Target data
    ):
    return jnp.mean((f(θ, x) - y)**2)

loss_gradient = jax.jit(jax.grad(loss_fn))

def update_parameters(
        θ: list,            # Current parameters (pytree)
        x: jnp.ndarray,     # Input data
        y: jnp.ndarray,     # Target data
        config: Config      # contains configuration data
    ):
    """
    Update the parameter pytree using gradient descent.

    """
    λ = config.learning_rate
    # Specify the update rule
    def gradient_descent_step(p, g):
        """
        A rule for updating parameter vector p given gradient vector g.
        It will be applied to each leaf of the pytree of parameters.
        """
        return p - λ * g
    gradient = loss_gradient(θ, x, y)
    # Use tree.map to apply the update rule to the parameter vectors
    θ_new = jax.tree.map(gradient_descent_step, θ, gradient)
    return θ_new

@partial(jax.jit, static_argnames=['config'])
def train_jax_model(
        θ: list,                    # Initial parameters (pytree)
        x: jnp.ndarray,             # Training input data
        y: jnp.ndarray,             # Training target data
        config: Config              # contains configuration data
    ):
    """
    Train model using gradient descent.

    """
    def update(_, θ):
        θ_new = update_parameters(θ, x, y, config)
        return θ_new

    θ_final = jax.lax.fori_loop(0, config.epochs, update, θ)
    return θ_final

# Reset parameter vector
config = Config()
param_key = jax.random.PRNGKey(1234)
θ = initialize_network(param_key, config)

# Warmup run to trigger JIT compilation
train_jax_model(θ, x_train, y_train, config)

# Reset and time the actual run
θ = initialize_network(param_key, config)
start_time = time()
θ = train_jax_model(θ, x_train, y_train, config)
θ[0].W.block_until_ready()  # Ensure computation completes
jax_runtime = time() - start_time

jax_mse = loss_fn(θ, x_validate, y_validate)
jax_train_mse = loss_fn(θ, x_train, y_train)
print(f"Trained model with JAX in {jax_runtime:.2f} seconds.")
print(f"Final MSE on validation data = {jax_mse:.6f}")

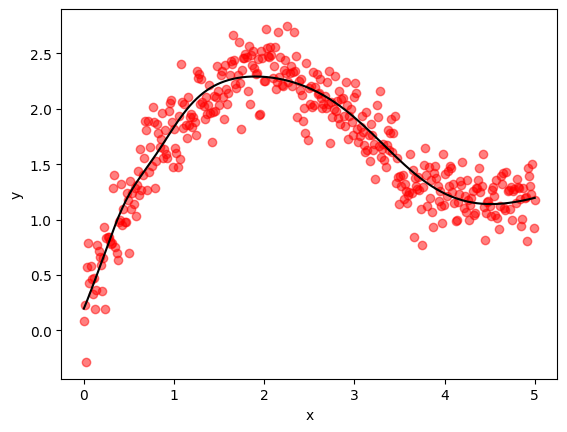

fig, ax = plt.subplots()
ax.scatter(x_validate, y_validate, color='red', alpha=0.5)
ax.plot(x_validate.flatten(), f(θ, x_validate).flatten(),
        label="fitted model", color='black')
ax.set_xlabel('x')
ax.set_ylabel('y')
plt.show()

@partial(jax.jit, static_argnames=['config'])
def train_jax_optax(
        θ: list,                    # Initial parameters (pytree)
        x: jnp.ndarray,             # Training input data
        y: jnp.ndarray,             # Training target data
        config: Config              # contains configuration data
    ):
    " Train model using Optax SGD optimizer. "
    epochs = config.epochs
    learning_rate = config.learning_rate
    solver = optax.sgd(learning_rate)
    opt_state = solver.init(θ)

    def update(_, loop_state):
        θ, opt_state = loop_state
        grad = loss_gradient(θ, x, y)
        updates, new_opt_state = solver.update(grad, opt_state, θ)
        θ_new = optax.apply_updates(θ, updates)
        new_loop_state = θ_new, new_opt_state
        return new_loop_state

    initial_loop_state = θ, opt_state
    final_loop_state = jax.lax.fori_loop(0, epochs, update, initial_loop_state)
    θ_final, _ = final_loop_state
    return θ_final

# Reset parameter vector
θ = initialize_network(param_key, config)

# Warmup run to trigger JIT compilation
train_jax_optax(θ, x_train, y_train, config)

# Reset and time the actual run
θ = initialize_network(param_key, config)
start_time = time()
θ = train_jax_optax(θ, x_train, y_train, config)
θ[0].W.block_until_ready()  # Ensure computation completes
optax_sgd_runtime = time() - start_time

optax_sgd_mse = loss_fn(θ, x_validate, y_validate)
optax_sgd_train_mse = loss_fn(θ, x_train, y_train)
print(f"Trained model with JAX and Optax SGD in {optax_sgd_runtime:.2f} seconds.")
print(f"Final MSE on validation data = {optax_sgd_mse:.6f}")

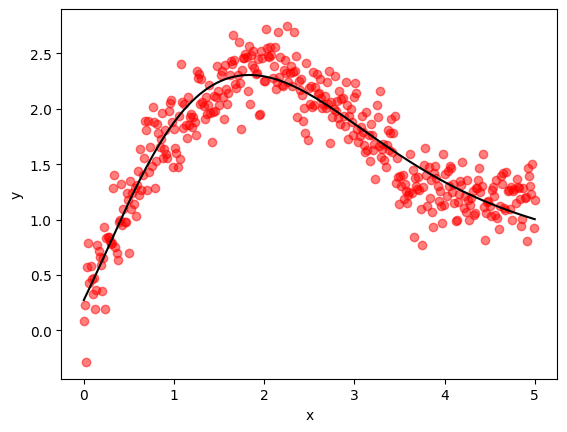

fig, ax = plt.subplots()
ax.scatter(x_validate, y_validate, color='red', alpha=0.5)
ax.plot(x_validate.flatten(), f(θ, x_validate).flatten(),
        label="fitted model", color='black')
ax.set_xlabel('x')
ax.set_ylabel('y')
plt.show()

@partial(jax.jit, static_argnames=['config'])
def train_jax_optax_adam(
        θ: list,                    # Initial parameters (pytree)
        x: jnp.ndarray,             # Training input data
        y: jnp.ndarray,             # Training target data
        config: Config              # contains configuration data
    ):
    " Train model using Optax ADAM optimizer. "
    epochs = config.epochs
    learning_rate = config.learning_rate
    solver = optax.adam(learning_rate)
    opt_state = solver.init(θ)

    def update(_, loop_state):
        θ, opt_state = loop_state
        grad = loss_gradient(θ, x, y)
        updates, new_opt_state = solver.update(grad, opt_state, θ)
        θ_new = optax.apply_updates(θ, updates)
        return (θ_new, new_opt_state)

    initial_loop_state = θ, opt_state
    θ_final, _ = jax.lax.fori_loop(0, epochs, update, initial_loop_state)
    return θ_final

# Reset parameter vector
θ = initialize_network(param_key, config)

# Warmup run to trigger JIT compilation
train_jax_optax_adam(θ, x_train, y_train, config)

# Reset and time the actual run
θ = initialize_network(param_key, config)
start_time = time()
θ = train_jax_optax_adam(θ, x_train, y_train, config)
θ[0].W.block_until_ready()  # Ensure computation completes
optax_adam_runtime = time() - start_time

optax_adam_mse = loss_fn(θ, x_validate, y_validate)
optax_adam_train_mse = loss_fn(θ, x_train, y_train)
print(f"Trained model with JAX and Optax ADAM in {optax_adam_runtime:.2f} seconds.")
print(f"Final MSE on validation data = {optax_adam_mse:.6f}")

fig, ax = plt.subplots()
ax.scatter(x_validate, y_validate, color='red', alpha=0.5)
ax.plot(x_validate.flatten(), f(θ, x_validate).flatten(),
        label="fitted model", color='black')
ax.set_xlabel('x')
ax.set_ylabel('y')
plt.show()
